Details

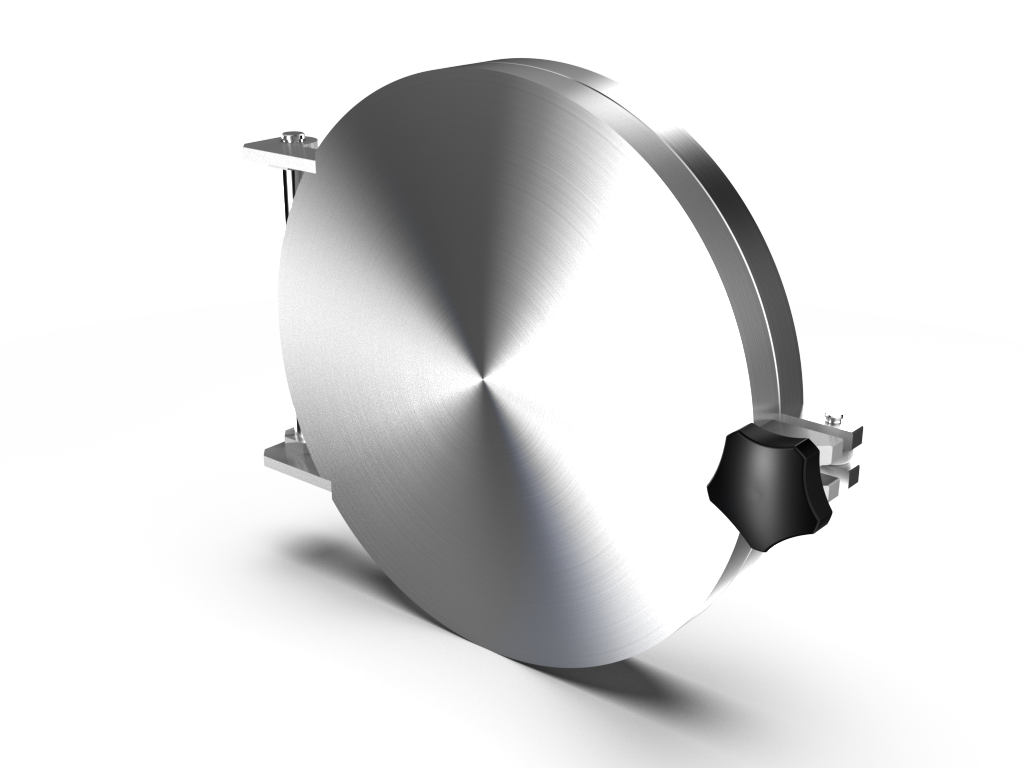

ITL Vacuum QAD-160F-BK (Quick Access Door) is a vital compenent for enabling fast and convenient entry into vacuum systems for sample transfers from atmosphere into the processing chamber / System.

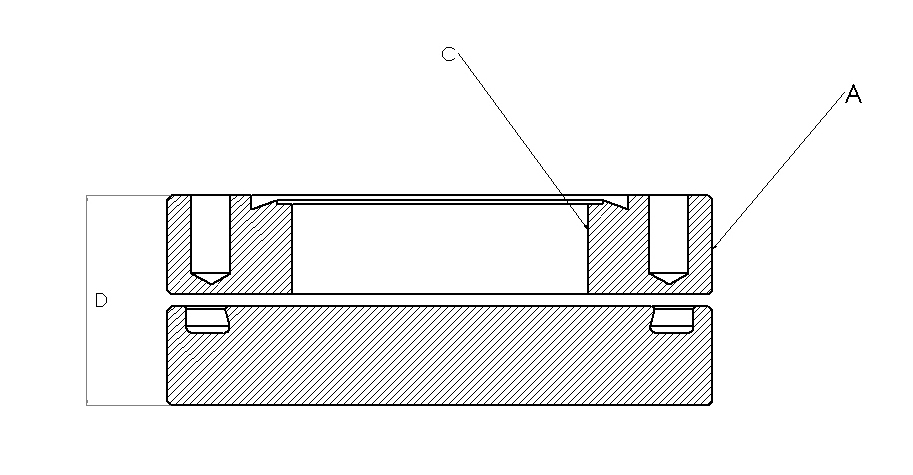

Dimensions
| Part Number |
Pneurop |
A |
C |
D |
| QAD-160F-BK |
ISO160 |
225.00 (8.85) |
153.00(6.02) |
32.5 (1.27) |
Technical Information
Flange Type: ISO160FBK
Flange Material: Stainless Steel (304)
Viewport: No
Flange seal Type: Viton O-Ring
Vacuum Range: 1.2bar~ 1x10-8 mba
Leak Rate: 1x10-9 mbar.l/sec
Temprature Range: -10°C to 200°C (Sustained 150°C)
