Details

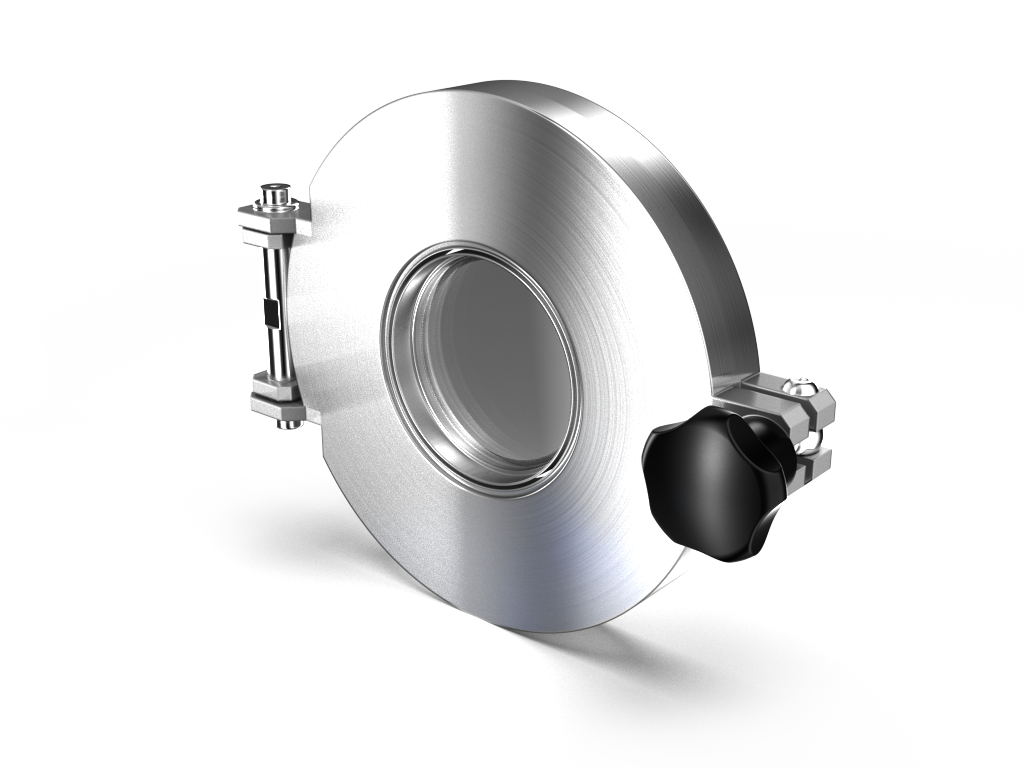

ITL Vacuum QAD-100F(Quick Access Door) is a vital compenent for enabling fast and convenient entry into vacuum systems for sample transfers from atmosphere into the processing chamber / System.
Dimensions
| Part Number |
Pneurop |
A |
B |
C |
D |
| QAD-100F |
ISO100 |
165.00 (6.49) |
66.90 (2.63) |
102.00 (4.01) |
24 (0.94) |
Technical Information
Flange Type: ISO100
Flange Material: Stainless Steel (304)
Viewport: Yes
Viewport Seal Type: Glass Seal
Flange seal Type: Viton O-Ring
Vacuum Range: 1.2bar~ 1x10-8 mba
Leak Rate: 1x10-9 mbar.l/sec
Temprature Range: -10°C to 200°C (Sustained 150°C)
