| PART NUMBER |
PNEUROP |
DESCRIPTION |
| VF-016 |
NW16 |

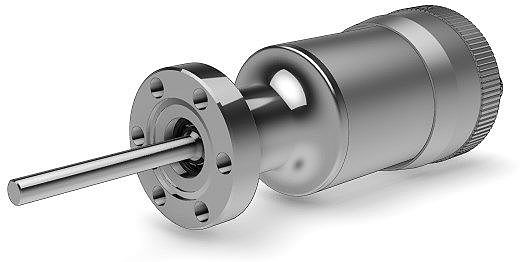

ROTARY FEEDTHROUGH, ALUMINIUM S/O DIAL |
Specification:
Sealing Mechanism: - Welded Bellows
Material Exposed to Vacuum: - Stainless steel.
Bakeout Temperature: - 200°C
Operating Temperature: - -20°C to 150°C
Pressure Range: - Atmosphere to 1 x 10⁻¹¹ Torr
Position Lock: - Thumb Screw
Maximum Torque: - 6.25 lbs. / in.
